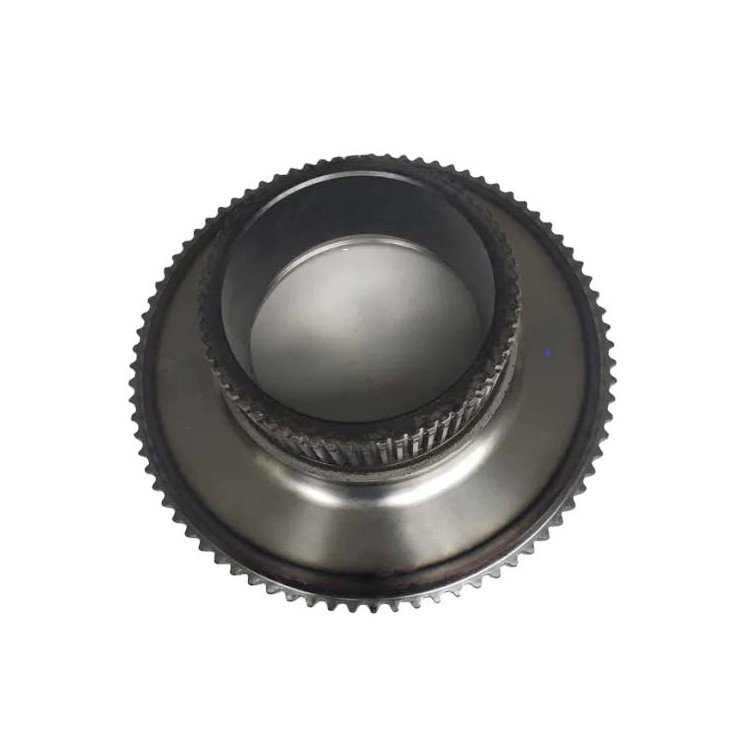

SINOTRUK HOWO Gear Ring Bracket WG2210100006 for HW Transmission Gearbox
Ensure seamless gear synchronization and eliminate high-load shifting lag with ARCHER's genuine factory-direct SINOTRUK HOWO Gear Ring Bracket (WG2210100006). Precision-forged from high-grade structural steel and tempered to withstand intense torsional friction, this robust bracket maintains rigid alignment of the synchronizer gear ring assembly.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
HOWO Gear Ring Bracket Assembly (WG2210100006)
⚙️ Heavy-Duty Transmission Synchronizer Ring Support for HW Series Manual Gearboxes
Product Overview
In high-tonnage mining transit, heavy construction hauling, and long-distance freight operations, a heavy truck’s transmission shifts under massive torque loads. A warped, bent, or poorly cast gear ring bracket fails to hold the synchronizer ring perfectly parallel to the mating gear cone, leading to hard shifting, gear grinding, unexpected pops out of gear, and severe internal planetary gear damage. At ARCHER, we distribute premium factory-direct SINOTRUK HOWO Gear Ring Brackets (Part Number: WG2210100006). Forged from high-tensile structural alloy steel and CNC-machined to exact original manufacturer standards, this structural component guarantees perfect synchronizer tracking and unyielding rigidity across heavy logistics schedules.
Technical Specifications Table
| Technical Parameter / Attribute | Engineering Specification Details |
|---|---|
| OEM Factory Part Number | WG2210100006 / WG 2210100006 |
| Transmission Compatibility | SINOTRUK HW 10-Speed / 12-Speed Manual & AMT Series (e.g., HW19710, HW19712) |
| Material Configuration | High-Grade Forged Structural Alloy Steel (Anti-Deformation Treated) |
| Surface Treatment | Anti-Rust Oiled Finishing / Case-Hardened Contact Splines |
| Functional Role | Maintains Synchronizer Gear Ring Alignment & Torsional Balance Points |
| Manufacturing Benchmark | Strict OEM Dimensional Tolerance Fitting Range Checked |
Comprehensive Fleet Applications & Model Coverage
The WG2210100006 gear ring bracket acts as a vital internal backbone inside classic SINOTRUK manual gearboxes. ARCHER ensures exact drop-in mechanical placement for the following truck variations:
🌟 HOWO Heavy Mining & Construction Platforms
Handles frequent forward/reverse cycling and high-impact shifting inside unpaved quarry pits:
• SINOTRUK HOWO 7 6×4 Dump Trucks / Heavy Tippers
• SINOTRUK HOWO 7 8×4 Infrastructure Tippers
• HOWO Heavy Concrete Mixers & Material Haulers
🌟 High-Speed Commercial Logistics & Tractors
Maintains reliable gear tracking across long-distance regional logistics networks and highway corridors:
• SINOTRUK HOWO 6×4 Prime Movers & Tractor Units
• SINOTRUK HOWO T7H / TX Heavy Cargo Delivery Trucks
• Heavy Intercity General Freight Rigid Trailers
Core Performance Advantages
🛡️ Precision Forged Alloy Matrix
Forged under massive pressures to achieve dense grain structure, ensuring the bracket withstands continuous torque stress without bending or fracturing.
🛡️ CNC Micrometer Tolerances
Milled using computer-guided cutting assemblies to ensure error-free dimensional fitment, allowing the synchronizer sleeve to slide smoothly with zero binding.
🛡️ Case-Hardened Contact Splines
Key contact faces undergo precision heat tempering to deliver excellent wear resistance against the rapid mechanical shifts of heavy truck operation.
Technical FAQ
1. What are the common warning signals that a gearbox gear ring bracket has suffered mechanical damage?
Clear diagnostic symptoms include a persistent grinding noise during specific gear engagements, difficulty shifting into higher ranges, or the gear lever suddenly popping back into neutral when under load. If you find metal flakes or small tooth fragments on your transmission magnetic drain plug, inspect the bracket immediately.
2. Should workshop mechanics change the synchronizer ring when installing a new WG2210100006 bracket?
Yes. If the original bracket failed or twisted, it typically causes uneven wear patterns on the brass or carbon lining of the mating synchronizer ring. Installing a new bracket alongside a fresh matching synchronizer ring ensures proper alignment and extends the service life of the gearbox.
3. Is this bracket directly compatible with alternative heavy truck transmission models like Fast or ZF?
No. The WG2210100006 part number is explicitly engineered for SINOTRUK original **HW gearbox structures** (such as HW19710 series). Other brands utilize entirely distinct internal gear patterns. Please share your transmission data plate tag with our technical sales team to confirm a perfect match before shipping.
Request a Factory-Direct Quote Today
Your Trusted Global Supplier for Genuine Heavy Machinery Spare Parts and Toughened Transmission Components.
