SINOTRUK WD615 Engine Camshaft VG1500050096 for HOWO Heavy Duty Trucks
Restore factory-spec valve timing precision and optimize fuel combustion efficiency with ARCHER's genuine factory-direct SINOTRUK Engine Camshaft (VG1500050096). Engineered specifically for the heavy-duty WD615 engine series, this high-precision camshaft is forged from top-grade structural steel and case-hardened to deliver exceptional wear resistance under intense mechanical stress.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

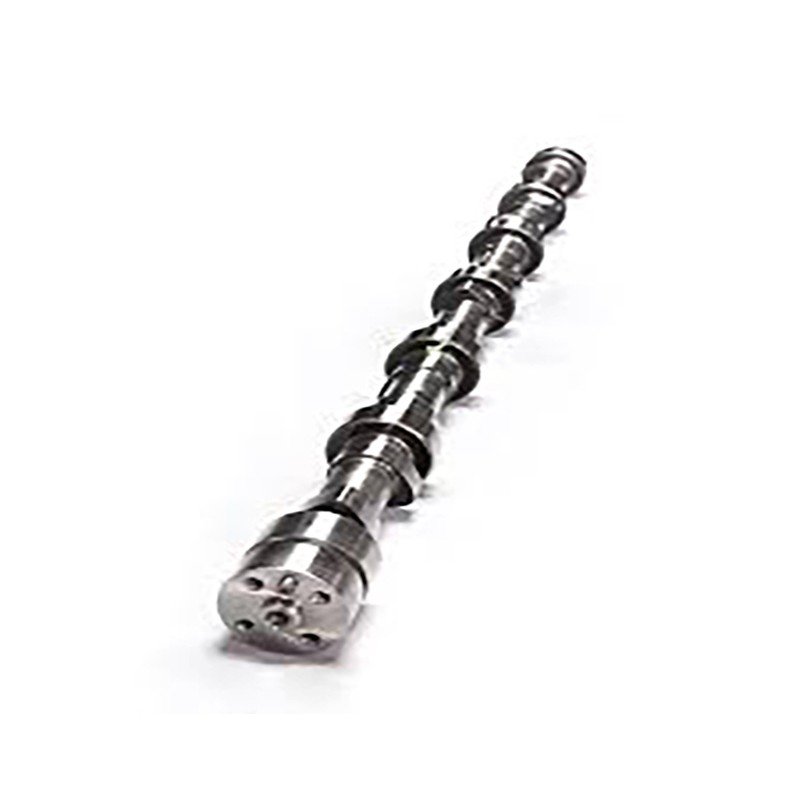

SINOTRUK Engine Camshaft (VG1500050096)
⚙️ Precision-Engineered Valve Timing Control Shaft for SINOTRUK WD615 Diesel Power Plants
Product Overview
In the demanding environment of heavy-duty commercial transport and mining logistics, the engine’s valvetrain operates under relentless thermal and mechanical stress. Severe profile wear or micro-cracking on an inferior aftermarket camshaft lobe directly compromises intake and exhaust valve lift timing, leading to engine misfires, excessive exhaust smoke, drop in horsepower, and high fuel consumption. At ARCHER, we distribute premium factory-direct SINOTRUK WD615 Engine Camshafts (Part Number: VG1500050096). Forged from high-integrity alloy steel and processed with advanced induction hardening on all lobe and journal profiles, this genuine camshaft guarantees perfect valve timing precision and maximum torque retention across your heavy truck’s operational life.
Technical Specifications Table
| Technical Parameter / Attribute | Engineering Specification Details |
|---|---|
| OEM Factory Part Number | VG1500050096 / VG 1500050096 |
| Engine Compatibility | SINOTRUK WD615 Series Euro II & Euro III Diesel Engines |
| Material Base | High-Strength Forged Structural Alloy Steel |
| Surface Treatment | Precision Induction Hardening & Fine Grinding (HRC 58-62 Lobe Hardness) |
| Valvetrain Structure | Overhead Valve (OHV) / Pushrod Driven Internal Block Mount |
| Manufacturing Standard | Original Manufacturer (OEM) Dimensional Tolerances |
Comprehensive Fleet Applications & Engine Coverage
The VG1500050096 camshaft assembly functions as the exact timing centerpiece across SINOTRUK heavy trucks utilizing the world-renowned WD615 engine family. ARCHER ensures direct factory integration and drops-in fitment for the following primary vehicle configurations:
🌟 HOWO Heavy Duty Dump & Tipper Series
Maintains high torque transfer and valvetrain structural rigidity across heavy overload construction machinery:
• SINOTRUK HOWO 7 6×4 Dump Trucks (WD615.47 / WD615.69 / WD615.87)
• SINOTRUK HOWO 7 8×4 Heavy Tippers
• HOWO Concrete Mixer Trucks & Heavy Crane Chassis
🌟 Long-Distance Logistics & Tractor Rigs
Engineered for high fuel efficiency and constant engine block cooling curves during long-haul freight transport operations:
• SINOTRUK HOWO 6×4 Prime Movers & Tractor Trucks
• SINOTRUK HOWO 4×2 Rigid Delivery Vehicles
• Heavy Cargo Logistics Trailers and Fuel Bowsers
Core Performance Advantages
🛡️ Advanced Case-Hardened Lobe Faces
The cam lobes undergo a deep induction hardening process, creating an ultra-hard surface outer layer that resists the massive friction forces delivered by pushrod lifters.
🛡️ Flawless Geometric Profiling
Precision ground to micrometer-level factory tolerances, our camshaft profiles ensure optimized valve open-and-close overlap periods to extract maximum combustion power.
🛡️ Anti-Fatigue Internal Core
The forged alloy structural inner matrix remains highly ductile and resilient, absorbing torsional vibration peaks safely to prevent sudden shaft snapping at high RPM limits.
Technical FAQ
1. Is the VG1500050096 camshaft universal for all SINOTRUK WD615 engines regardless of horsepower rating?
The VG1500050096 part number covers the overwhelming majority of traditional 290HP, 336HP, and 371HP variants within the standard WD615 diesel line. However, certain specialized high-efficiency common rail configurations or alternative emission packages utilize unique valve timings. We always recommend cross-verifying your engine ID plate or data tag with our technical sales staff prior to packing.
2. Should workshop mechanics replace the valve lifters/tappets simultaneously when installing a new camshaft?
Yes. Engineering best practices strongly demand mating a new camshaft assembly with a fresh set of valve tappets. Reusing old, unevenly worn tappets against a pristine new hardened lobe will accelerate wear patterns, quickly degrading the profile and voiding structural lifespans.
3. What are the common warning signals that a truck’s engine camshaft has suffered excessive lobe wear?
Clear diagnostic symptoms include a persistent “clattering” or clicking sound radiating from the cylinder head cover, a noticeable loss of pulling power on inclines, dark unburnt smoke emissions, or microscopic metal shavings collecting on the engine oil filter during oil changes.
Request a Factory-Direct Quote Today
Your Trusted Global Supplier for Genuine Heavy Machinery Spare Parts and Internal Engine Components.
Official Web: www.archerparts.com | www.archermach.com
